IP54 12PSDB Kraftstoffpumpenprüfbank zur Prüfung verschiedener Kraftstoffpumpen

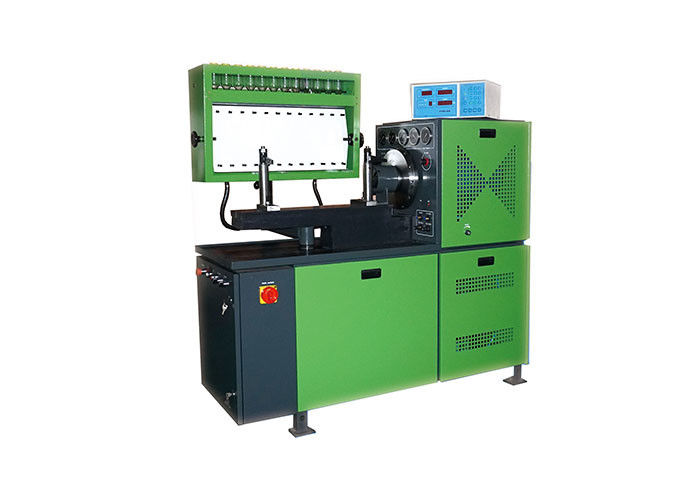

ADMTECK 12PSDB,Fuel Pump Test Bench, for testing different fuel pumps, different output power for option,with forced oil lubriion funtion

Quick Details

Technical specifiion:

1. Motor power:.5.5KW/7.5KW/11KW/15KW/

2. Power supply voltage:415,380,220v

3. Power supply frequency:50/60 HZ

4. Protection level:IP54

5. Speed range:0-4000 rpm

6. Counter setting range:0-9999

7. Temperature setting range:0-80°C

8. Center height of driving shaft:125mm

9. DC power:12/24V

10. Diameter of the Driving connector:120mm

11. Measuring tube:45ml,150ml,260ml(optional)

12. Number of Measuring cylinder:6,8,12

13. Oil Supply pump:10L/min

14. Oil supply pressure: High pressure:0-40bar;low perssure:0-4bar

15. Oil tank cubage:60L

16. Pressure meter: Low pressure:0-6bar;high pressure:0-60bar;inner pressure:0-16bar;Vacuum pressure:.1-2.5bar; Oil meter : 0-10bar

17. Heat Power:2kw

18. Temperature controlled range:30-65

19. Size:1600*960*1650mm

20. Weight:750kg

Function

1. Fuel delivered from each cylinder on any speed can be tested

2. Speed, temperature, counter, pressure, Rack meter can be displayed on the numeric unit of test bench.

3. Forced oil lubriion function (Optional)

4. Directly driven by motor, variable frequency stepless speed regulation

5. Static inspection on the delivery time of each cylinder

6. Inspection on Performance of the mechanical and pneumatic governor

7. Inspection on performance of the solenoid valve

8. Inspection on performance of the minus pressure of pneumatic governor

9. Inspection on the performance of the Pressure Compensator

10. Oil returned volume of distribute pump

11. Inspection on the Inner pressure of the VE pump

12. Inspection on the performance of the minus pressure of pneumatic governor

13. Inspection on Pump body sealing performance

Competitive Advantage:

Advantages with ranges of adjustment speed, stable speed, large torque, easy operation and so on.
